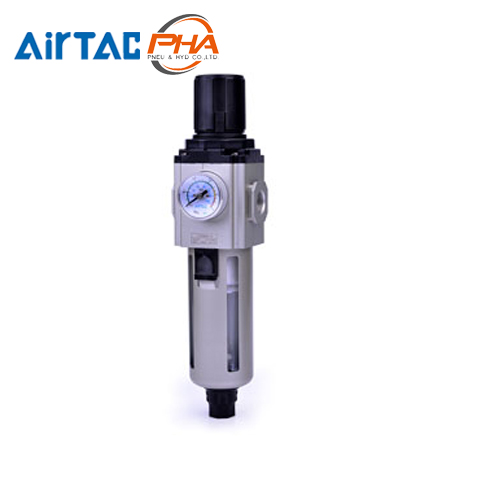

ตัวกรองลมดักน้ำและตัวปรับแรงลม รุ่น GAFR Series

Circular square pressure gauge which with clip and magnifier is used to save installation space.
The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
Balanced design is adopted for the pressure adjustment mechanism.
Unique diversion structure spins the air flowing through to effectively separate the liquid from the air and reliably filter the solid grain.
The filtering grade includes 5 µm and 40µm (optional).
Two drain types are available: semi-auto drain and automatic drain.
Three material of bowl are available: PC, Nylon and metal.
The bracket can be selected for installation.

[Note 1] PT thread, G thread and NPT thread are available.

Example : GAFR200-06 / GAFR200-08 / GAFR300-08

How to Select: GAFR300₍₁₎ [ ]₍₂₎ 10₍₃₎ [ ]₍₄₎ S₍₅₎ [ ]₍₆₎ [ ]₍₇₎ W₍₈₎ G₍₉₎ K₍₁₀₎

(1) Model	(2) Bowl material	(3) Port size	(4) Drain type	(5) Type code	(6) Accessories	(7) Pressure gauge	(8) Filtering grade	(9) Thread type	(10) Code of reflux valve
GAFR200: GA200 Series Filter & regulator	Blank: PC bowl C: Metal bowl N: Nylon bowl	06: 1/4" 08: 1/4"	Blank: Semi-auto drain +Manual drain A: Automatic drain	S: Standard L: Lower pressure [Note1]	Blank: Bracket J: No bracket	Blank: Circular N: No gauge	Blank: 40µm W: 5µm	Blank: PT (MPa/psi) G: G (bar/MPa) T: NPT (psi/bar)	Blank: No reverse flow valve is attached K: Reverse flow valve is attached [Note2]
GAFR300: GA300 Series Filter & regulator		08: 1/4" 08: 1/4" 10: 3/8" 15: 1/2"
GAFR400: GA400 Series Filter & regulator		10: 3/8" 15: 1/2"
GAFR600: GA600 Serie Filter & regulator	C: Metal bowl	20: 3/4" 25: 1"

[Note 1] The maximum work pressure of lower pressure type is 0.4 MPa (58 psi);
[Note 2] Please refer to page 194 for details of reflux valve.

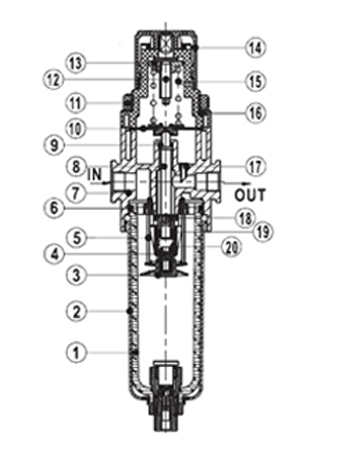

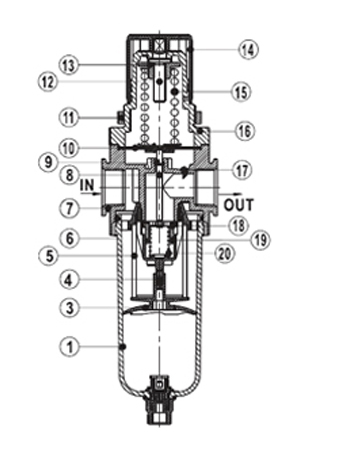

Inner AirTAC - FR ตัวกรองลมดักน้ำและตัวปรับแรงลม รุ่น GAFR Series

Inner AirTAC - FR ตัวกรองลมดักน้ำและตัวปรับแรงลม รุ่น GAFR Series

NO	Item	Material
1	Drain bowl	Alumium alloy / Pc / Nylon
2	Meter cover	SPCC
3	Umbrella baffle	High viscosity POM
4	Air guider	High viscosity POM
5	Filter core	HDPC
6	O-ring	NBR
7	Body of filter-regulator	Alumium alloy
8	Adjusting spool	Brass(GAFR600)\ POM (others)
9	O-ring	NBR
10	Diaphragm	NBR
11	Fixation ring cap	Alumium alloy (GAFR600)\ POM (others)
12	Adjusting ring cap	Steel
13	Regulator knob	Steel
14	Pressure knob	POM
15	Spring	SWPB
16	Adjusting seat	Alumium alloy (GAFR600)\ POM (others)
17	feedback	POM
18	Adjusting plug	Brass & Rubber
19	O-ring	NBR
20	Spring	SWPB

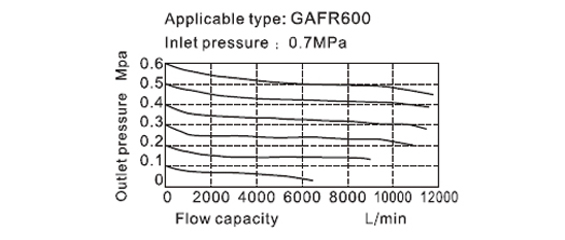

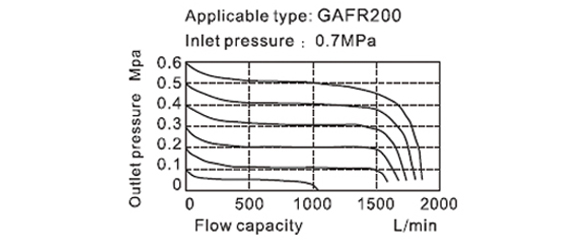

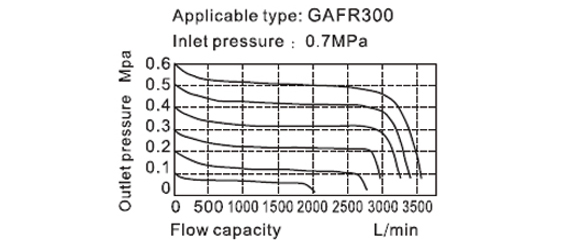

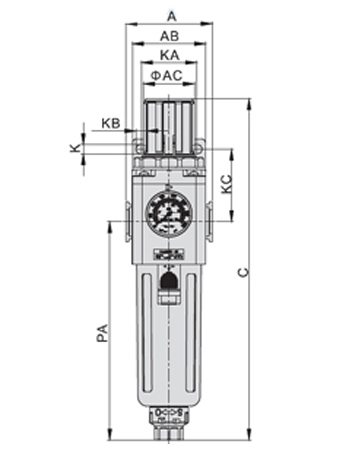

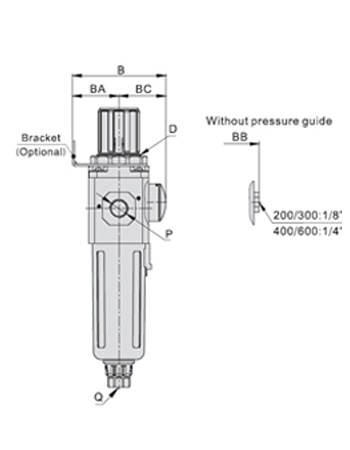

dimensions

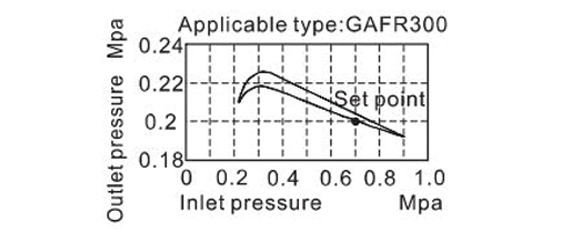

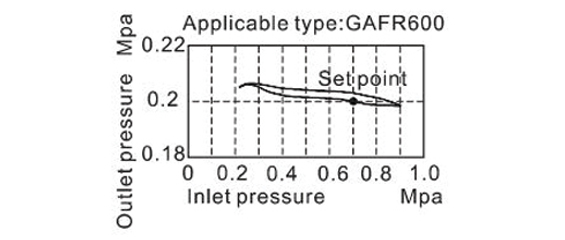

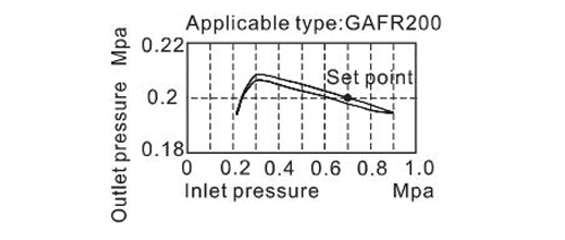

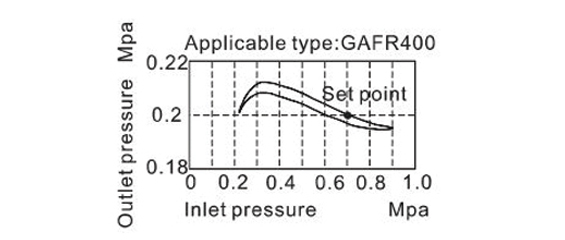

pressure-chart-2

model\ltem	A	AB	AC	B	BA	BB	BC	C	D	K	KA	KB	KC	P	PA	Q
GAFR200-06	52.5	55	31	69	30	55.5	39	192.5	M33x1.5	5.4	34	15.4	52	1/8"	120	M5x0.8
GAFR200-08	52.5	55	31	69	30	55.5	39	192.5	M33x1.5	5.4	34	15.4	52	1/4"	120	M5x0.8
GAFR300-08	62.5	53	38	82.5	41	72	41.5	247	M40x1.5	6.5	40	8	52.5	1/4"	158	G1/4
GAFR300-10	62.5	53	38	82.5	41	72	41.5	247	M40x1.5	6.5	40	8	52.5	3/8"	158	G1/4
GAFR300-15	62.5	53	38	82.5	41	72	415	247	M40x1.5	6.5	40	8	52.5	1/2"	158	G1/4
GAFR400-10	80	72	52	99	50	88	49	285.5	M55X2.2	8.5	55	11	57	3/8"	177.5	G1/4
GAFR400-15	80	72	52	99	50	88	49	285.5	M55x2.0	8.5	55	11	57	1/2"	177.5	G1/4
GAFR600-20	100	90	59	128	70	117	58	336.5	M62x1.5	11	66	13	76	3/4"	205	G1/4
GAFR600-20	100	90	59	128	70	117	58	336.5	M62x1.5	11	66	13	76	1"	205	G1/4
