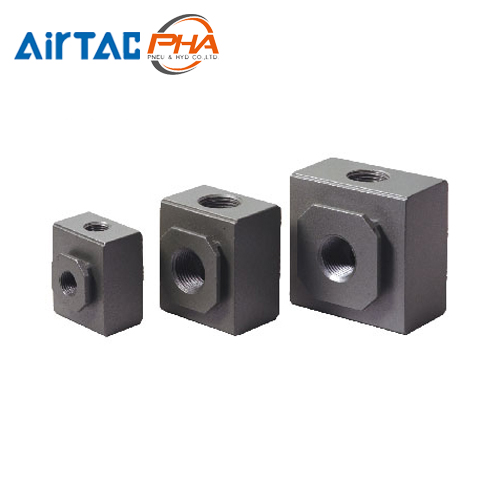

- It is installed between GA series regulator (or filter & regulator) and G series lubricator. the air flow is divided by the device that one enters lubricator to supply oil for lubrication and the other (the second way) directly enters the equipment.
- Several kinds of brackets can be selected to connect regulator and lubricator. Optional brackets are type T, type L and type U.
-
Specifications | AirTAC - ตัวแยกทางลม GA Series
Model GA200-06 GA200-08 GA300-08 GA300-10 GA400-10 GA400-15 GA600-20 GA600-25 Fluid Air Port size [Note 1] 1/8" 1/4" 1/4" 3/8" 3/8" 1/2" 3/4" 1" Way number Four Pressure range 0~1.0 MPa (0~145 psi) Proof pressure 1.5 MPa (215 psi) Temperature range -20~70 °C [Note 1] PT thread, G thread and NPT thread are available.
-
Ordering code | AirTAC - ตัวแยกทางลม GA Series
Example : GA200-10 / GA200-10 / GA300-10 / GA300-10
How to Select: GA200(1) 08(2) G(3)
(1) Model (2) Port size (3) Thread type GA200: 200 series gas-distribution block 06: 1/8"
08: 1/4"Blank: PT
G: G
T: NPTGA300: GA300 series gas-distribution block 08: 1/4"
10: 3/8"GA400: GA400/500 series gas-distribution block 10: 3/8"
15: 1/2"GA600: GA600 series gas-distribution block 20: 3/4"
25: 1"Note: When it is used with F.R.L. combination, extra mounting braket needed. Please to P205 for order detail.
-

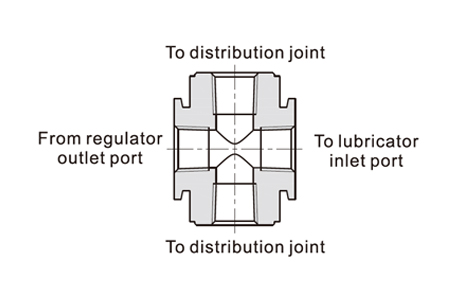

Inner structure | AirTAC - ตัวแยกทางลม GA Series
-
How to use the bracket | AirTAC - ตัวแยกทางลม GA Series

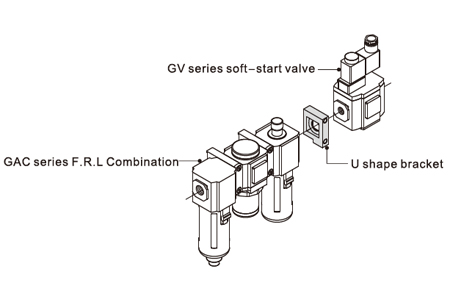

Use to joint GV and GAC series

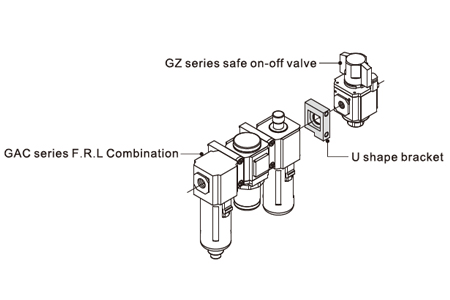

Use to joint GZ and GAC series

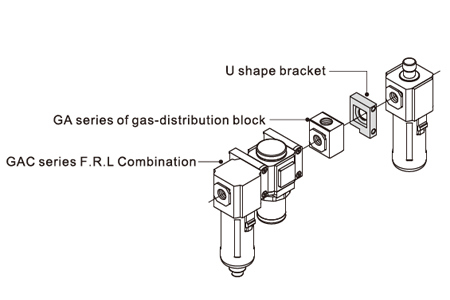

Use to joint GA and GAC series

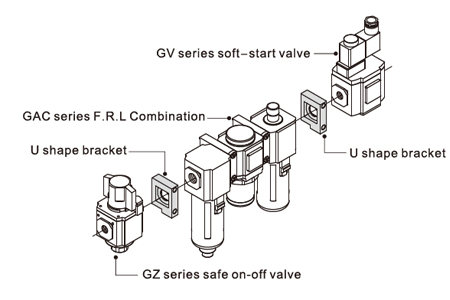

Use to joint GZ, GV and GAC series
-
Dimensions | AirTAC - ตัวแยกทางลม GA Series

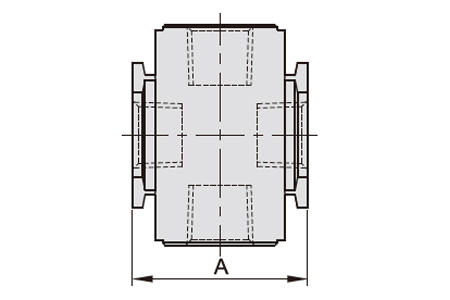

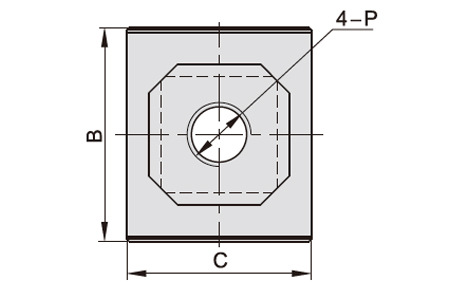

Model\Item A B C P GA200 06 28.5 36 30 1/8" 08 28.5 36 30 1/4" GA300 08 35 44 38 1/4" 10 35 44 38 3/8" GA400 10 42 52 52 3/8" 15 42 52 52 1/2" GA600 20 60 76 68 3/4" 25 60 76 68 1"
