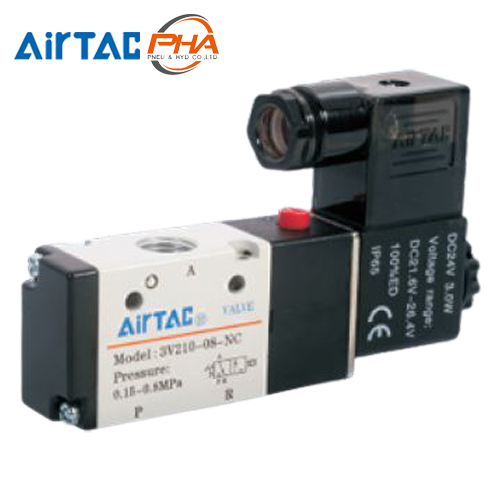

AirTAC - Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว รุ่น 3V Series
AirTAC - Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว รุ่น 3V Series
- Pilot-oriented mode: Internal pilot or external pilot.
- Structure in sliding column mode: good tightness and sensitve reaction.
- Double control solenoid valves have memory function.
- Internal hole adopts special processing technology which has little attrition friction, low start preesure and long service life.
- No need to add oil for lubrication
- Affiliated menual devices are equipped to facilitate installation and debugging.
- Several standard voltage grades are optional.
- Integrate with the manifold to save installation space.
-
Specifications | AirTAC - Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว รุ่น 3V Series
Model 3V210-06 3V220-06 3V210-08 3V220-08 Fluid Air (to be filtered by 40 µm filter element) Acting Internal pilot or external pilot Port size (1) In = Out = 1/8" In = Out = 1/4" Orifice size 14.0 mm2 (Cv=0.78) 16.0 mm2 (Cv=0.89) Valve type 3 port 2 position Lubrication (2) Not required Operating pressure 0.15~0.8 MPa (21~114 psi) Proof pressure 1.5 MPa (215 psi) Temperature -20~70 °C Material of body Aluminum alloy - PT thread, NPT thread and G thread are available.
- Once lubricated air is used, continue with same medium to optimise valve life span, Lubricants like ISO VG32 or equivalent are recommended.
-
Ordering code | AirTAC - Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว รุ่น 3V Series
How to Select: 3V(1) 2(2) 10(3) 08(4) NO(5) A(6) [ ](7) [ ](8) W(9)

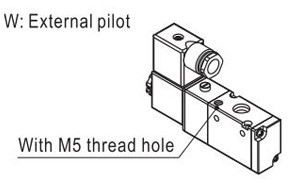

(1) Model (2) Code (3) Valve type (4) Port size (5) Acting type (6) Voting type (7) Electrical entry (8) Thread type (9) Pilot type Valve type Acting type 3V: Solenoid valve (3/2 way) 2: 200 series 10: Single solenoid
20: Double solenoid06: 1/8"
08: 1/4"10 NC: Normally closed
NO: Normally openedA: AC220V
B: DC24V
C: AC110V
E: AC24V
F: DC12VBlank: Terminal

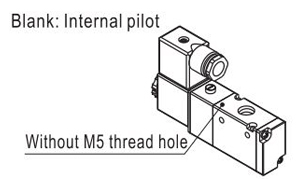

I: GrommetBlank: Terminal
T: NPT
G: G
20 Not code
Please refer to 36 for manifold specification and the order way.
-

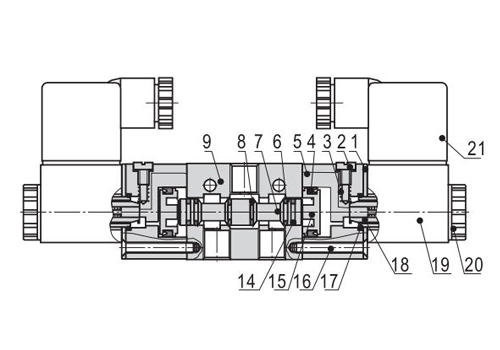

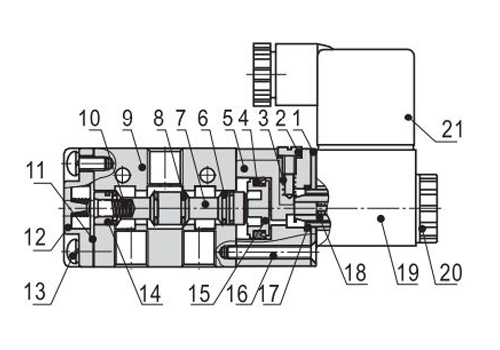

Inner structure | AirTAC - Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว รุ่น 3V Series
3V210
3V220
No. Item 1 Fixed plate 2 Manual override 3 Override spring 4 Piston O-ring 5 Pilot body 6 Spool packing 7 Spool 8 O-ring 9 Body 10 Spool spring 11 Bottom cover gasket 12 Bottom cover 13 Screw 14 Wearring 15 Piston 16 Pilot screw 17 O-ring 18 Armature 19 Coil 20 Coil net 21 Connector -

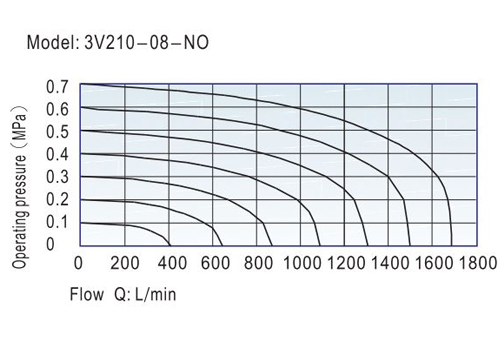

Flow chart | AirTAC - Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว รุ่น 3V Series
-
Dimensions | AirTAC - Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว รุ่น 3V Series

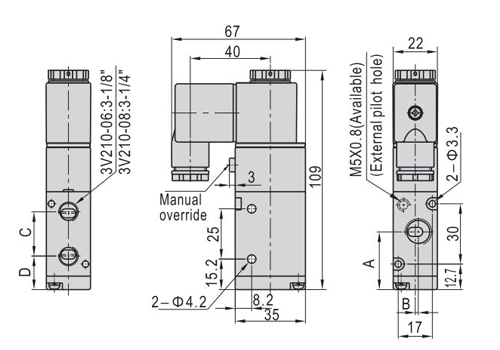

3V210 (Terminal)

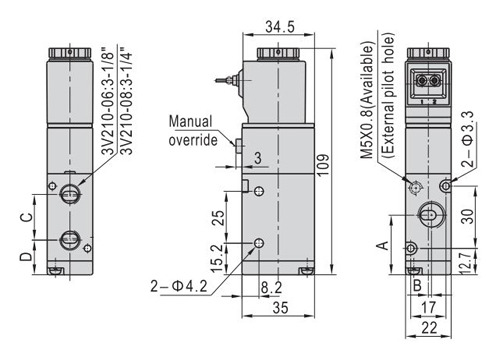

3V210 (Grommet)

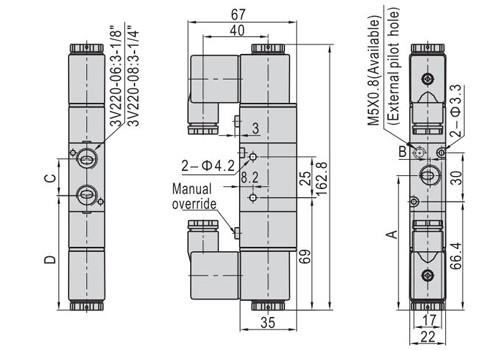

3V220 (Terminal)

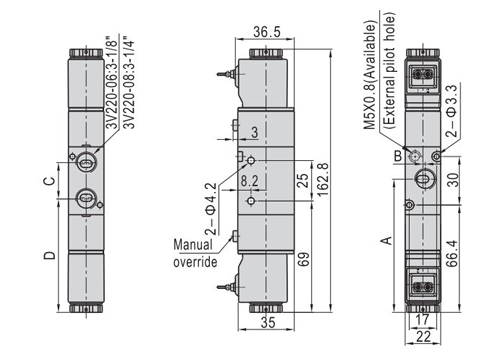

3V220 (Grommet)
