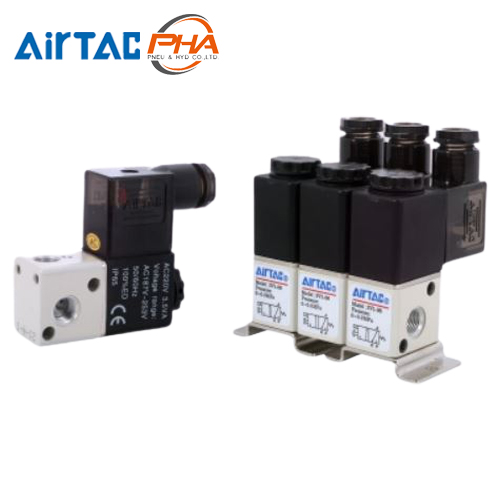

AirTAC - Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว รุ่น 3V1 Series
AirTAC - Solenoid Valve โซลินอยด์วาล์ว 3V1 Series
- Direct acting type and normally closed mode, flexible in direction change
- No need to add oil for lubrication
- Several valves can be installed integrately to save installation space
- Affiliated manual devices are quipped to facilitate installation and debugging
- Several standard voltage grades are optional
-
Specifications | AirTAC - Solenoid Valve โซลินอยด์วาล์ว 3V1 Series
Model 3V1-M5 3V1-06 Fluid Air (to be filtered by 40µm filter element) Acting Direct acting Port size (1) M5 1/8" Valve type 3 port 2 position Lubrication Not required Operating pressure 0~0.8 MPa (0~114 psi) Proof pressure 1.5 MPa (215 psi) Temperature -20~70 °C Orifica size ϕ 1.2 mm Material of body Aluminum alloy (1): PT thread and G thread are available.
-
Coil Specifications | AirTAC - Solenoid Valve โซลินอยด์วาล์ว 3V1 Series
Item Specifications Standard Voltage AC220V, AC110V, AC24V, DC24V, DC12V Scope of Voltage AC: ±15%
DC: ±10%Power Consumption AC: 3.5VA
DC: 3.0WProtection IP65 (DIN40050) Temperature classification B Class Electrical entry Terminal, Grommet Activating time 0.05 sec and below Max. frequency (1) 10 Cycle/sec (1) The maximum actuation frequency is in the no-load state.
-
Ordering code | AirTAC - Solenoid Valve โซลินอยด์วาล์ว 3V1 Series
Example : 3V1-M5 / 3V1-06
How to Select: 3V(1) 1(2) 06(3) A(4) [ ](5) P(6)
(1) Model (2) Code (3) Port Size (4) Voltage (5) Electrical entry (6) Thread type 3V: Solenoid (3/2 way) 1: 1 series M5: M5
06: 1/8"A: AC220V
B: DC24V
C: AC110V
E: AC24V
F: DC12VBlank: Terminal
I: GrommetP: PT
T: NPT
G: G -
Inner structure | AirTAC - Solenoid Valve โซลินอยด์วาล์ว 3V1 Series
NO. Item 1 Connector 2 Gasket 3 Coil nut 4 Coil 5 Armature 6 O-ring 7 Return spring 8 Body -

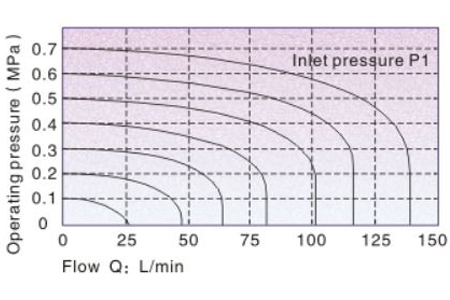

Flow chart | AirTAC - Solenoid Valve โซลินอยด์วาล์ว 3V1 Series
-

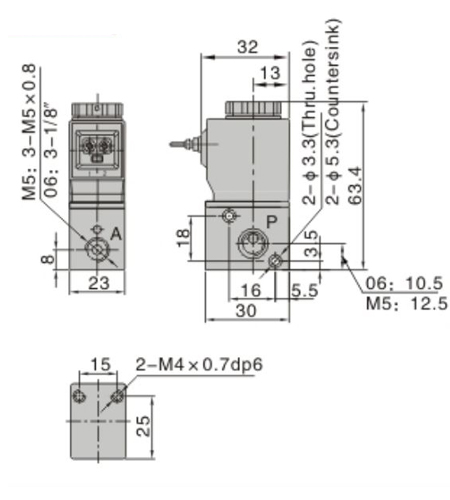

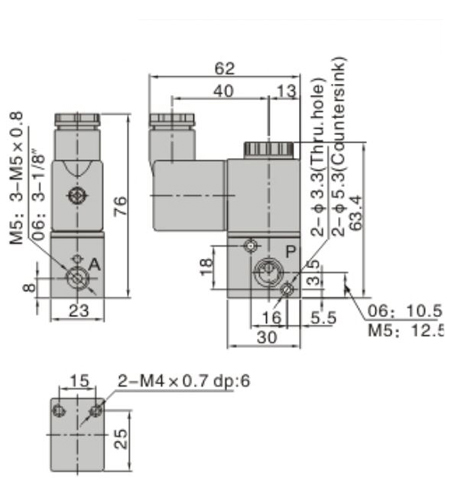

Dimensions | AirTAC - Solenoid Valve โซลินอยด์วาล์ว 3V1 Series
Terminal
Gromment
