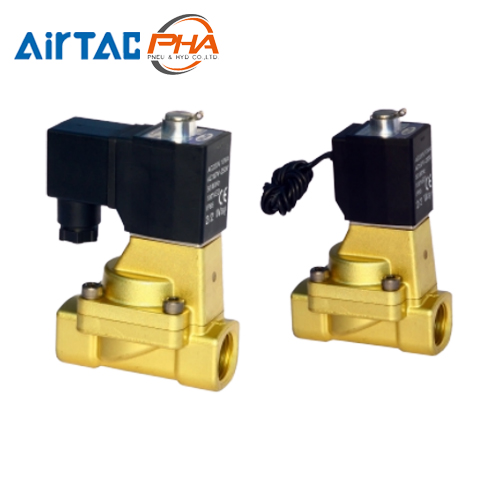

AirTAC - Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2KW Series
AirTAC - Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2KW Series
- 2/2 way intermally piloted and normally opened type solenoid valve can quickly change the direction and has large volume.
- It has tight structure, small size and light weight. it is easy to be installed and dismounted.
- The valve body is made of brass. The temperature classification of coil is B. The standard's material is FPM-F, please contact us if other material needed.
- The levels of protection of the coil are IP65 and the electrical entry includes grommet and terminal.
-
Specifications | AirTAC - Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2KW Series
Type/Item Port Size (1) Orifice Size (ϕmm) Cv Valid Area of section (mm2) Weight (g) (2) Operating Pressure differentia Proof pressure MPa psi Mpa psi 2KW150-15 1/2" 15.0 5.50 100.0 730 Max: 0.7
Min: 0.05Max: 100
Min: 101.5 220 2KW200-20 3/4" 20.0 9.50 170.0 960 2KW250-25 1" 25.0 12.50 220.0 1210 - PT thread, NPT thread and G thread are available.
- The weight in the table is the terminal valve's weight, grommet valve's weight is 10g less than terminal's
-
Ordering code | AirTAC - Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2KW Series
Selection: 2KW15015AP
How to select: 2KW(1) 150(2) 15(3) A(4) [ ](5) P(6)
(1) model (2) Orifuce size (3) Port size (4) Voltage (5) Electrical (6) Thread type 2KW: 2/2 Way internally piloted and normaily opened 150: ϕ15mm
200: ϕ20mm
250: ϕ25mm15: 1/2"
20: 3/4"
25: 1"A: AC220V
B: DC24V
C: AC110V
E: AC24V
F: DC12VBlank: Terminal
I: GrommmetP: PT
T: NPT
G: G -

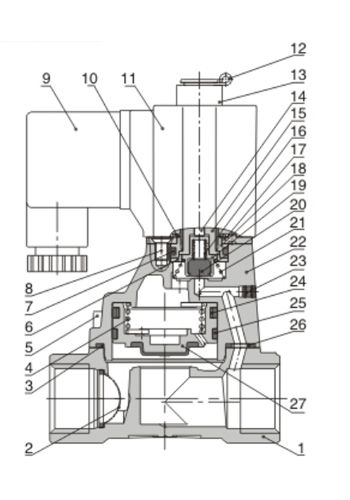

Inner structure | AirTAC - Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2KW Series
2KW150 Terminal
No. Item No. Item No. Item No. Item 1 Body 8 Screw 15 Movable core 22 Cover 2 Filter 9 Commector 16 Spring 23 plug 3 O-ring 10 Washer 17 Fixed plate 24 Bonnet spring 4 Spring 11 Coil assnbly 18 Fixed cap 25 Wear ring 5 Screw 12 E Clip 19 Airtight bushing 26 Bushing 6 Clip 13 Position ring 20 Airtight ring 27 Piston 7 O-ring 14 Man drill 21 Spring - - -

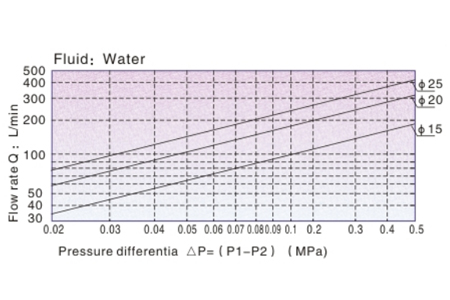

Flow chart | AirTAC - Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2KW Series
-

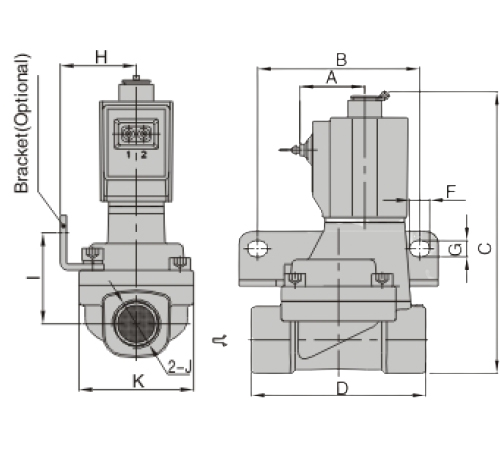

Dimensions | AirTAC - Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2W Series
(Terminal)
Type\Item A B C D E F G H I J K 2KW150-15 52.5 65 112.3 70 77 8 6.4 30.5 36.5 1/2" 46 2KW200-20 52.5 75 120.8 82 78.5 8 6.4 34 40 3/4" 53 2KW250-25 52.5 80 129.3 92 81 8 6.4 36 44.5 1" 59 Grommet
Type\Item A B C D F G H I J K 2KW150-15 26 65 112.3 70 8 6.4 30.5 36.5 12" 46 2KW200-20 26 75 120.8 82 8 6.4 34 40 3/4" 53 2KW250-25 26 80 129.3 92 8 6.4 36 44.5 1" 59
