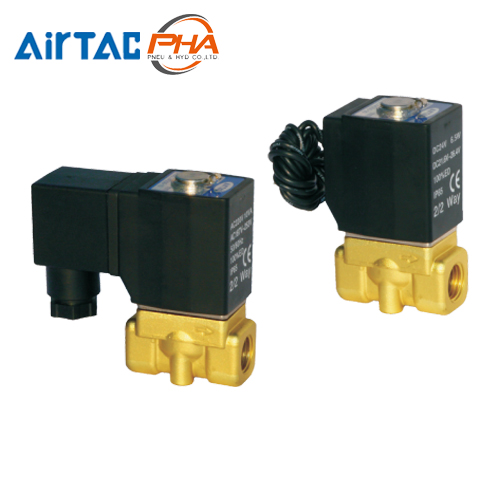

- Direct acting and normally closed type 2/2 way solenoid valve. It's high sensibilily allows it to change direaction quickly
- It has wide pressure range, including extra high pressure (X), high pressure (H), standard, large volume (L) and extra large volume (T) to choose from
- It's compact, small size and light weight. It's easy to install and dismantle.
- The valve body is made of brass. It's coil has a Heat resistance classification of Class B. The standard seal material is FPM-F. Please contact us if other material are required.
- The protection class of the coil is IP65 and there is a choice for grommet or terminal electrical entry.
-
Specifications | AirTAC - Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2W Series
Type/Item Port Size (1) Orifice size (ϕmm) Cv Valid area or section (mm2) Weight (g) (2) Max. operating pressure differentia Proof pressure MPa Psi MPa PSI 2WX030 06 1/8" 1.5 0.10 1.8 305 3.0 450 5.0 750 08 1/4" 295 2WH030 06 1/8" 2.0 0.18 3.0 305 2.0 300 08 1/4" 295 2W030 06 1/8" 3.0 0.33 6.0 305 1.0 150 08 1/4" 295 2WL030 06 1/8" 4.0 0.55 10.0 305 0.5 75 08 1/4" 295 2WT030 06 1/8" 6.0 1.10 12.0 305 0.1 15 08 1/4" 295 2WX050 10 3/8" 3.0 0.34 6.1 620 3.0 450 15 1/2" 600 2WH050 10 3/8" 4.0 0.55 10.0 620 2.0 300 15 1/2" 600 2W050 10 3/8" 5.0 0.83 15.0 620 1.0 150 15 1/2" 600 2WL050 10 3/8" 7.0 1.40 25.0 620 0.5 75 15 1/2" 600 2WT050 10 3/8" 10.0 2.20 40.0 620 0.1 15 15 1/2" 600 -
Ordering code | AirTAC - Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2W Series
Ordering code for manifold
Exmaple: 2WL03008AP
How to Select: 2W(1) L(2) 030(3) 08(4) A(5) [ ](6) P(7)
(1) Model (2) Pressure condition (3) Size series (4) Pirt size (5) Voltage (6) Electrical entry (7) Thread type 2W : 2/2 way direct-acting and normally closed X: Extra high pressure
H: High pressure
Blank: Standard
L: Large volume
T: Extra large volume030: 030 Series
050: 050 Series030 Series
06: 1/8"
08: 1/4"
050 Series
10: 3/8"
15: 1/2"A: AC220V
B: DC24V
C: AC110V
E: AC24V
F: DC12VBlank: Terminal
I: GrommentP: PT
T: NPT
G: G -

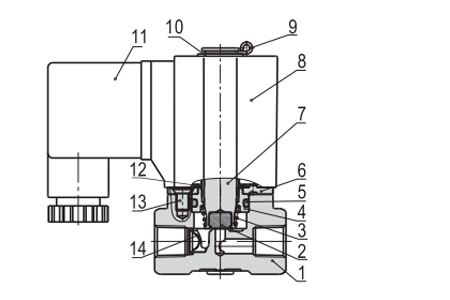

Inner structures | AirTAC - Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2W Series
No. Item No. Item No. Item 1 Body 6 Fixed plate 11 Connecter 2 Airtight ring 7 Movable core 12 Washer 3 Spring 8 Coil assembly 13 Screw 4 Fixed cap 9 E Clip 14 Filter 5 O-ring 10 Gasket -

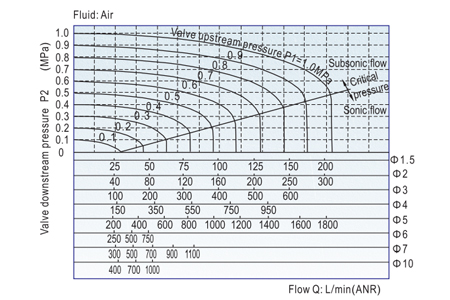

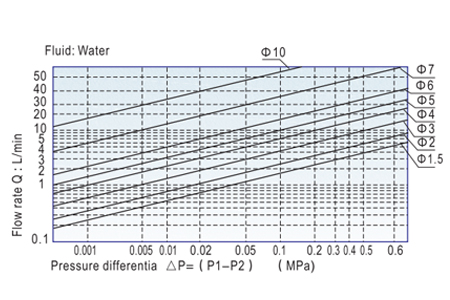

Flow chart | AirTAC - Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2W Series
-

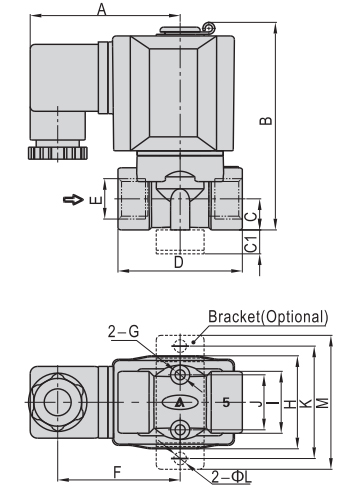

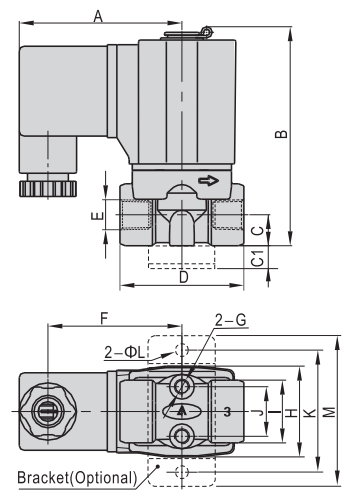

Dimensions | AirTAC - Solenoid Valve โซลินอยด์วาล์ว ทองเหลือง 2W Series
2W030 (Terminal)
2W050 (Terminal)
Type\Item A B C C1 D E F G H I J K L M 2W030-06 52.5 70.7 10 10 40 1/8" 43.3 M5 29.3 20.2 16 40 5.3 49 2W030-08 52.5 70.7 10 10 40 1/4" 43.3 M5 29.3 20.2 16 40 3.3 49 2W050-10 62.7 87 13 10 52 3/8" 51.2 M5 39 26 23 48 5.3 56 2W050-15 62.7 87 13 10 52 1/2" 51.2 M5 39 26 23 48 5.3 56 2W030 (Grommet)

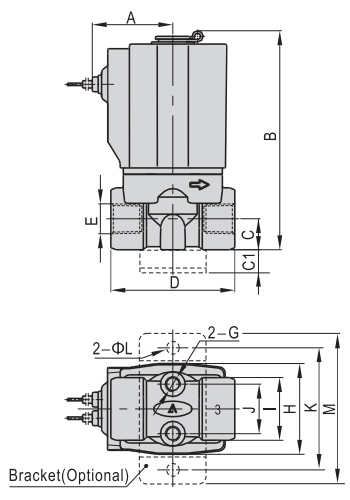

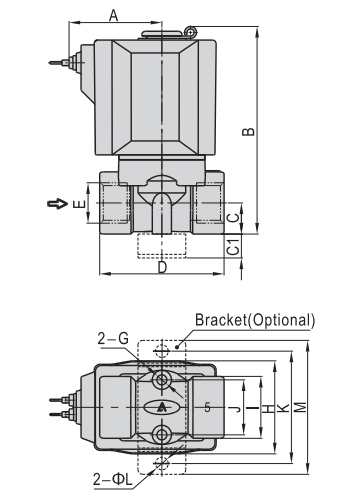

2W050 (Grommet)
Type\Item A B C C1 D E G H I J K L M 2W030-06 26 70.7 10 10 40 1/8" M5 29.3 20.2 16 40 5.3 49 2W030-08 26 70.7 10 10 40 1/4" M5 29.3 20.2 16 40 3.3 49 2W050-10 39 87 13 10 52 3/8" M5 39 26 23 48 5.3 56 2W050-15 39 87 13 10 52 1/2" M5 39 26 23 48 5.3 56
