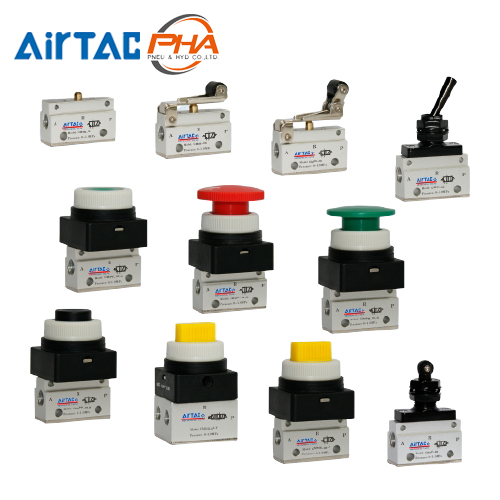

AirTAC - แมคคานิควาล์ว Mechanical Valve แบบต่างๆ CM3 Series

The external force requiced by direction-change of CM3B, CM3L, CM3V and CM3R is provided by external mechanism, which can be used for position test or stoke switch.
CM3PF, CM3PM, CM3PL, CM3HS, CM3HD and CM3Y are operated manually, owning control joints with several structure forms and suitable for application under different conditions.
It is in cut-off structure. Internal circle is sealed with good tightness, the direction-change is sensitive and lubricant is not necessary.
Multi-mouting method makes it convenient to install and apply
The control joint of series of CM3L, CM3V, CM3R and CM3Y are made of metal which has longer service life and more reliable and steady performance.

Model	CM3[ ]-05	CM3[ ]-06	CM3[ ]-08
Operating	External Control
Fluid	Air (to be filled by 40µm filter element)
Pressure range	0~10.0 bar)
Proof pressure	1.5 MPa (215 psi) (15.0 bar)
Temperature	-20~70 °C
Valve type	3 port 2 position
Orifice size	2.0 mm²	2.5 mm²	15.0 mm²

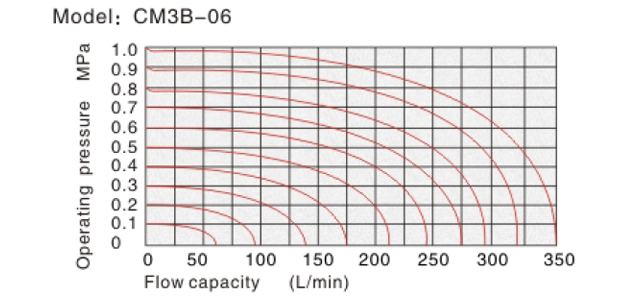

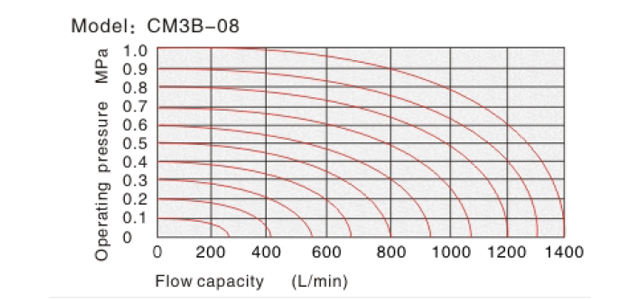

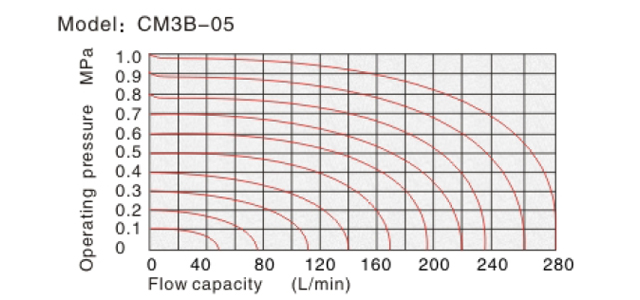

Cv value	0.11	0.14	0.84
Port size (1)	M5x0.8	1/8"	1/4"
Material of body	Aluminium

Example: CM3PP06BP

How to select: CM3₍₁₎ PP₍₂₎ 06₍₃₎ B₍₄₎ P₍₅₎

(1) Valve's type	(2) Model	(3) Port size	(4) Button color	(5) Thread type
CM3: CM type 3/2 way	B: Basic type	05: M5 06: 1/8" 08: 1/4"	No option for bottom color	P: PT T: NPT G: G
	R: Roller type
	L: Roller with free return type
	V: vertical roller type
	Y: Lever type
	PL: Latching type (only red)		R: Red
	PP: Protruding type		R: Red G: Green B: Black Y: Yellow
	PF: Flat type
	PM: Mushroom type
	HS: Selector type
	HD: Double-selector type

(1) When the thread is M5 type, the code is blank.

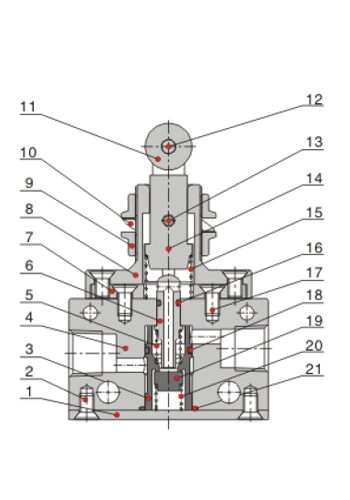

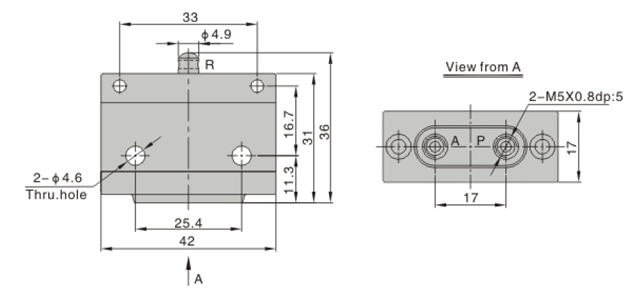

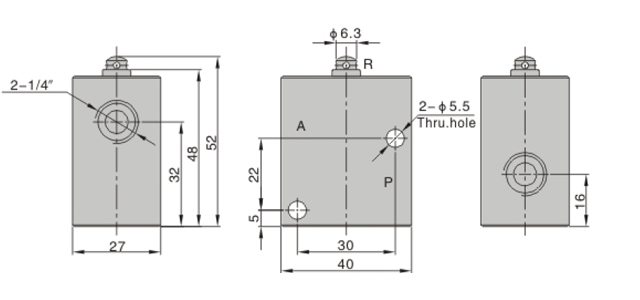

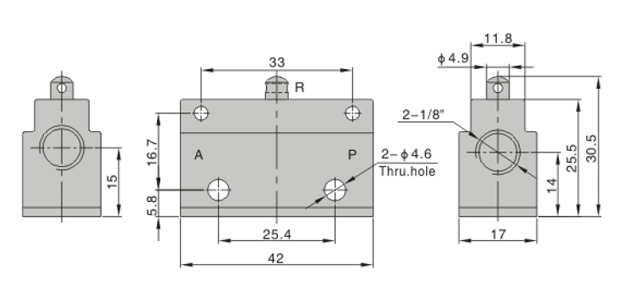

Inner AirTAC - Mechanical Valve CM3 Series
