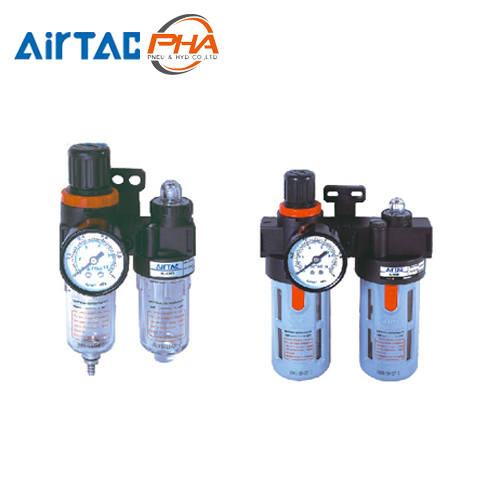

AirTAC - FR.L ชุดกรองลมดักน้ำ รุ่น AFC, BFC Series

The structure is delicate and compact. which is convenient for installation and application
The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere
The pressure loss is low and the efficiency of water separating is high
The quentity of oil dripping can be directly observed through transparant check-dome
In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4 MPa)

Model	AFC1500	AFC2000	BFC2000	BFC3000	BFC4000
Fluid	Air
Port size	1/8"	1/4"	1/4"	3/8"	1/2"
Filtering grade	40 µm
Pressure range	Semi-auto and autimatic drain: 0.15~0.9 MPa (20~130 psi)
Pressure range	Manual drain: 0.05~0.9 MPa (7~130 psi)
Proof pressure	1.5 MPa (215 psi)
Temperature range	-20~70 °C
Capacity of filter cup	15CC		60CC
Capacity of drain bowl	25CC		90CC
Recommended lubricant	ISO VG 32 or equivalent
Weight	500g		700g
Constitute Filter - Regulator	AFR1500	AFR2000	BFR2000	BFR3000	BFR4000
Consitute Lubricator	AL1500	AL2000	BL2000	BL3000	BL4000

Example: AFC2000MWP

How to Select: AFC₍₁₎ 2000₍₂₎ M₍₃₎ [ ]₍₄₎ W₍₅₎ P₍₆₎

(1) Model	(2) Port size	(3) Drain type	(4) Scale	(5) Filtering grade	(6) Thread
AFC: A series FR.L unit	1500: 1/8"	Blank: Semi-auto drain M: Manual drain A: Automatic drain (Only BFC series)	Blank: MPa P: psi B: bar Z: Double scale (psi, kgf/cm²)	Blank: 40µm W: 5 µm	P: PT T: NPT G: G
AFC: A series FR.L unit	2000: 1/4"
AFC: B series FR.L unit	2000: 1/4"
	3000: 3/8"
	4000: 1/2"
