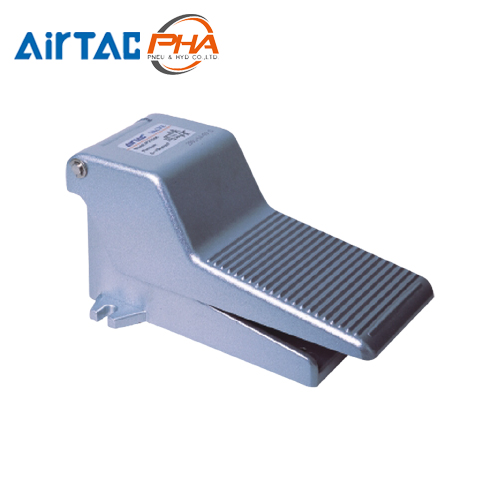

AirTAC - แมคคานิควาล์ว Mechanical Valve แบบวาล์วเท้าเหยียบ 4F Series
AirTAC - แมคคานิควาล์ว Mechanical Valve แบบวาล์วเท้าเหยียบ 4F Series
- The aluminum foot pedel is designed with direct acting, which is steady and reliable
- If the duration of direction-change is long, the valves with lock may by selected
- The clamping framework is steady and reliable that it is easy and quick to unlock. However, with the limitation of the dimension of structure, it can not bear frequent strong impact
- Plastic guard with high strength may be selected.
-
Specifications | AirTAC - แมคคานิควาล์ว Mechanical Valve แบบวาล์วเท้าเหยียบ 4F Series
Model 4F210-08 4F210-08L 4F210-08G 4F210-08LG Fluid Air (to be filtered by 40µm filter element) Operating Acting type controlled by foot Port size (1) 1/4" Valve type 5 port 2 position Pressure range 0~0.8 MPa (0~114 psi) Proof pressure 1.5 MPa (215 psi) Temperature -20~70 °C Material of body Aluminum alloy Lubrication Not required 1 PT thread, NPT thread and G thread are available.
-
Ordering code | AirTAC - แมคคานิควาล์ว Mechanical Valve แบบวาล์วเท้าเหยียบ 4F Series
Example: 4F21008LP
How to select: 4F210(1) 08(2) L(3) P(4)
(1) Model (2) Port size (3)Note (4) Thread type 4FM210: 3/2way foot pedal valve M8: 1/4 Blank: withoutlock
L: With lock
G: With guard
LG: With lock and guardP: PT
T: NPT
G: G -

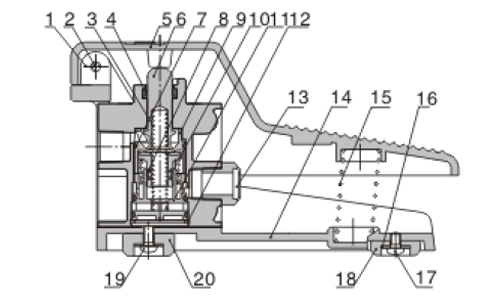

Inner structure | AirTAC - แมคคานิควาล์ว Mechanical Valve แบบวาล์วเท้าเหยียบ 4F Series
NO Item NO Item NO Item 1 Pin 8 O-ring 15 Pedal spring 2 Screw 9 Front cover 16 Washer 3 Sprong 10 Piston 17 Screw 4 E clip 11 Bottom cover 18 Base pad 5 Pedal 12 C Clip 19 Screw 6 Spool 13 Silencer 20 Base pad 7 O-ring 14 Base -

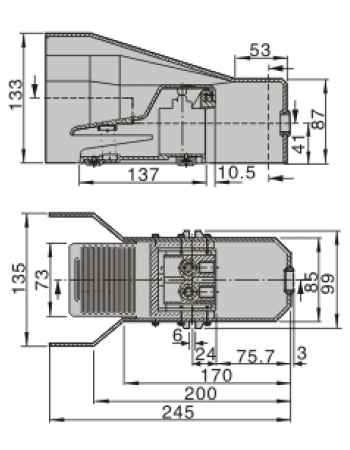

Dimensions | AirTAC - แมคคานิควาล์ว Mechanical Valve แบบวาล์วเท้าเหยียบ 4F Series

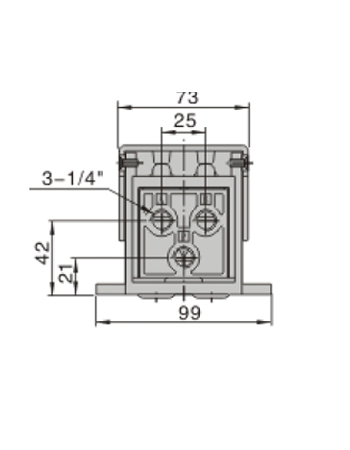

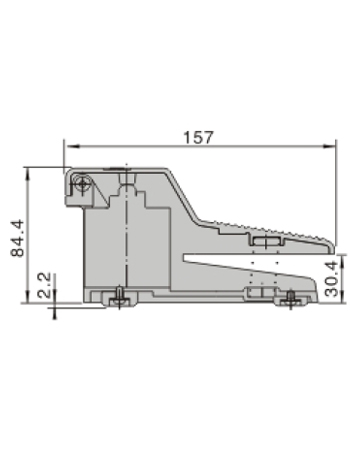

4F210-08

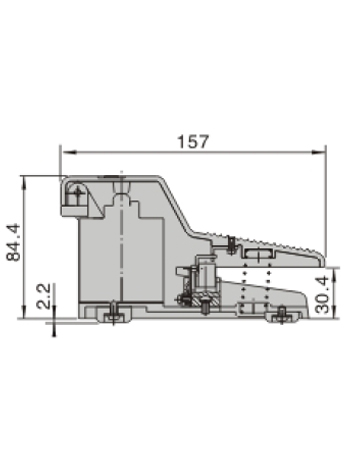

4F210-08L

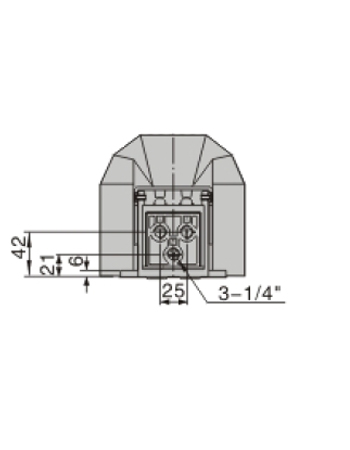

4F210-08G

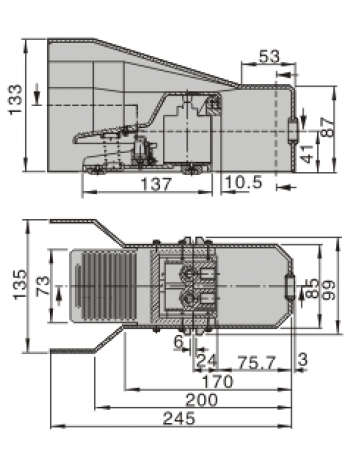

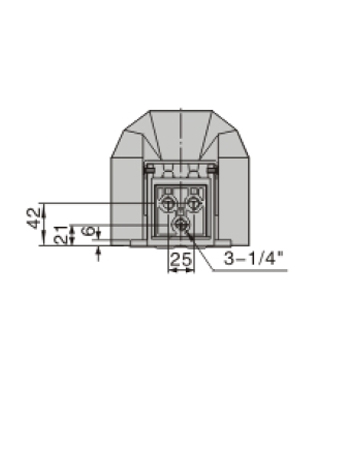

4F210-08LG
